Name: China Fiber-coupled Optical Receiver Manufacturers, Suppliers - Factory Direct Wholesale - Softel
Brand: Softel
SKU: 271812355

1GHz FTTH mini optical receiver. Optical AGC range is -15 ~ -5dBm, output level is 78dBuV. Support optical filter, comptable with WDM network. Ultra low power consumption. +5VDC power adapter, compact structure. Suitable for both home fiber optic access and complex optical networks

Send Inquiry

Product Introduction

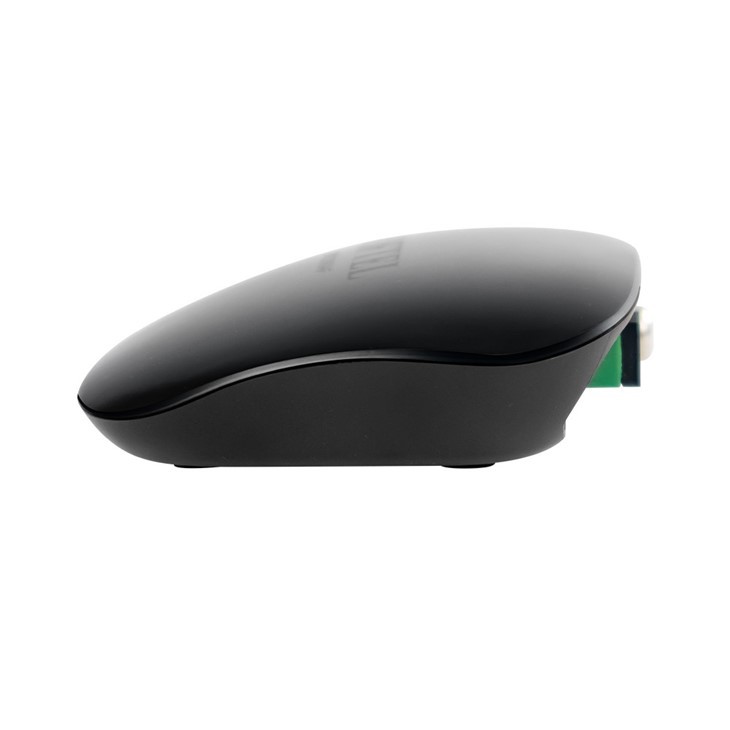

SR200AF FTTH Optical Receiver

SR200AF-5

Performance Characteristic

l 1GHz FTTH mini optical receiver.

l Optical AGC range is -15 ~ -5dBm, output level is 78dBuV.

l Support optical filter, comptable with WDM network.

l Ultra low power consumption.

l +5VDC power adapter, compact structure.

Technical Parameter of Fiber-coupled Optical Receiver

	Item	Unit	Parameter
Optical	Optical wavelength	nm	1100-1600, the type with optical filter: 1550±10
	Optical return loss	dB	>45
	Optical connector type		SC/APC
	Input optical power	dBm	-18 ~ 0
	Optical AGC range	dBm	-15 ~ -5
	Frequency range	MHz	45~ 1003
	Flatness in band	dB	±1	Pin= -13dBm
	Output return loss	dB	≥ 14	Pin= -13dBm
	Output level	dBμV	≥ 78	OMI=3.5%, AGC range
	MER	dB	>32	96ch 64QAM, Pin= -15dBm, OMI=3.5%
	BER	-	1.0E-9 (post-BER)	96ch 64QAM, Pin= -15dBm, OMI=3.5%
Others	Output impedance	Ω	75
	Supply voltage	V	+5VDC
	Power consumption	W	≤2
	Operating temperature	℃	-20～+55
	Storage temperature	℃	-20～+60
	Dimensions	mm	99x80x25

What is a Fiber-coupled optical receiver?

Fiber-coupled optical receiver is the core device used in the optical communication system to convert the optical signal transmitted by the optical fiber into an electrical signal, which accurately couples the light output from the optical fiber to the photodetector (such as PIN diode or APD) through the optical component, and then shapes the weak electrical signal into a recognizable digital signal by the amplification and processing circuit, which has the characteristics of high receiving sensitivity and strong anti-interference. It is widely used in optical fiber communication networks, high-speed interconnection of data centers, optical fiber sensing and other scenarios.

packaging
