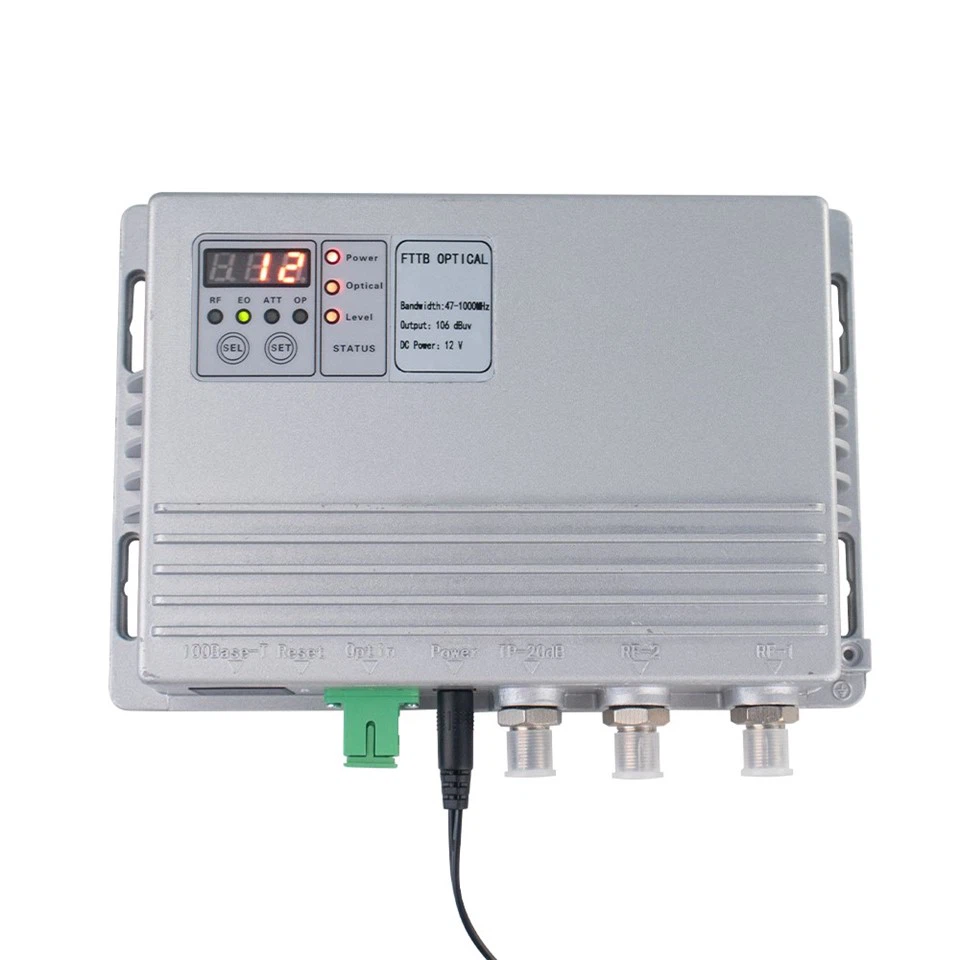

FTTB Optical Receiver

Serial No.

Item

Technical parameters

Remarks

1

Received wavelength

1290-1600nm

2

Input optical reflection loss

>45dB

3

Current responsiveness

0.85A/W(1310nm representative value )

4

Range of received optical power

+3dBm～-9dBm

5

output level

106dBμV±1dB

+2dBm- -6dBm receive

6

Fiber Type

single mode(9/125nm)

7

Fiber Optic Connector Type

FC/APC or SC/APC

8

Equivalent noise input current

≦8PA√Hz

SJ/T10663-1995 NO.4.21

9

Frequency bandwidths

87-1002MHz

10

RF in-band flatness

±±1dB

11

RF reflection loss

≥16dB (45-1000MHz)

12

System link metrics

C/N ≥46dB

note

C/CTB ≥ 62dB

C/CSO ≥ 62dB

13

Test Port Level

-20dB

Relative to main output

14

Gain Adjustment Ranges

0~20dB(1 dB progress)

(of products) leave the factory 0dB

15

Range of tilt adjustments

0~14dB(1 dB progress)

(of products) leave the factory 0dB

16

RF output connection

F-connector

17

Power supply voltage for AC

DC+12A/1A

18

maximum power dissipation

≤10W

Note: Under the specified link loss conditions, configure 59 PAL-D analog TV channel signals within the 550MHz frequency range, and transmit digital modulation signals within the 550 MHz to 862MHz frequency range. The level of the digital modulation signal (within an 8 MHz bandwidth) is 10dB lower than the carrier level of the analog signal. When the optical receiver input optical power is-6 dBm, measure C/CTB, C/CSO, and C/N. The nominal RF output level is at the 862 MHz frequency point, with the actual output being 10dB lower.
